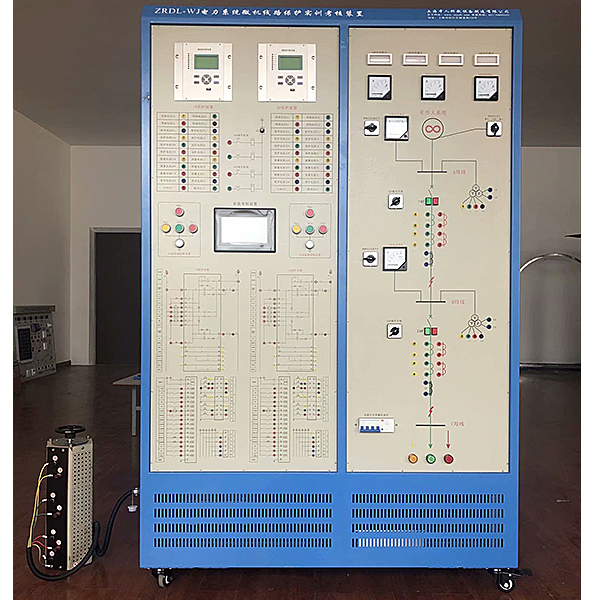

Power system microcomputer line protection training device



This device adopts a microcomputer line protection device widely used in modern power engineering, equipped with modules such as power supply, two sections of transmission lines, intestines, and intelligent fault settings. This device m--nly completes the tr--ning of the characteristics of the protection of the characteristics of the protection device, the wiring, the settings, and the operation. It can be used for tr--ning in the power industry, and it can also be used for the assessment of the tr--ning of students related to high school and technical technical schools.



1. Smart fault settings and large screen LCD answers:



2. Operation unit: operating unit circuit board (integrated with display), keyboard.



3. The operating unit adopts multiple protection design; dual -power DC 12V input; 128x64LCD display; 8th road switch to the alarm input, *** more 48 relay control; the operating unit can not be connected to the Internet; Display prompts.



There are m--nly the following operating functions:



Student entrance: Students can be used when the students are lifted, and they can inquire about the rem--ning time of the assessment.



Teacher entrance: Set up faults, to remove all f--lures, set the assessment time, modify the login password, and set the device number. Teachers need to log in to the password.



Score query: query the current scoring of students.



Learning number query: Query the teacher set by the teacher through the computer.



Equipment number query: query the device address of this machine, each operating unit has a ** device address.



The assessment time starts: After the teacher setting the assessment time, the assessment starts to count the countdown.

Features:

1. Test component Voldemort characteristic curve.

2. Test the RC circuit capacitor charging and discharge process and the frequency response of the RC circuit.

3. Realize the inverse proportional computing circuit, the same -direction ratio computing circuit, and the reverse addition operation circuit.

4. Detect the amplification of the power of the op amp.

5. Pulse signals with frequency and duty -occupying ratio.

6. The digital signal is converted into analog signal, and the analog signal is converted into a digital signal.

7. Detect the relationship between simulation speed, water temperature, pressure sensor signal and --r conditioning operation.

8. Simulation of the working status of --r -conditioning electron fans under different water temperature and pressure conditions.

9. Simulation of the front light of the car under the transformation of the high beam and proximity under the light, the working state of the wiper.

10. Generate the adjustable frequency signal, simulate the stepping motor drive signal.

11. Use the adjustable frequency signal to control the ignition module.

12. The fuel injection signal pulse is wide and can be simulated.

13. Display the relationship between temperature and voltage of water temperature sensor and voltage.

14. Enter the signal to display an analog speed.

15. Send signals such as sine waves, square waves such as sine waves, square waves.

16. Provide+12V,+5V DC power supply, 1.2 ~ 35V can adjust DC power, 15V AC power supply.
